Question 1

Where do you position the bracing bars on the bulkhead?

Accepted Answer

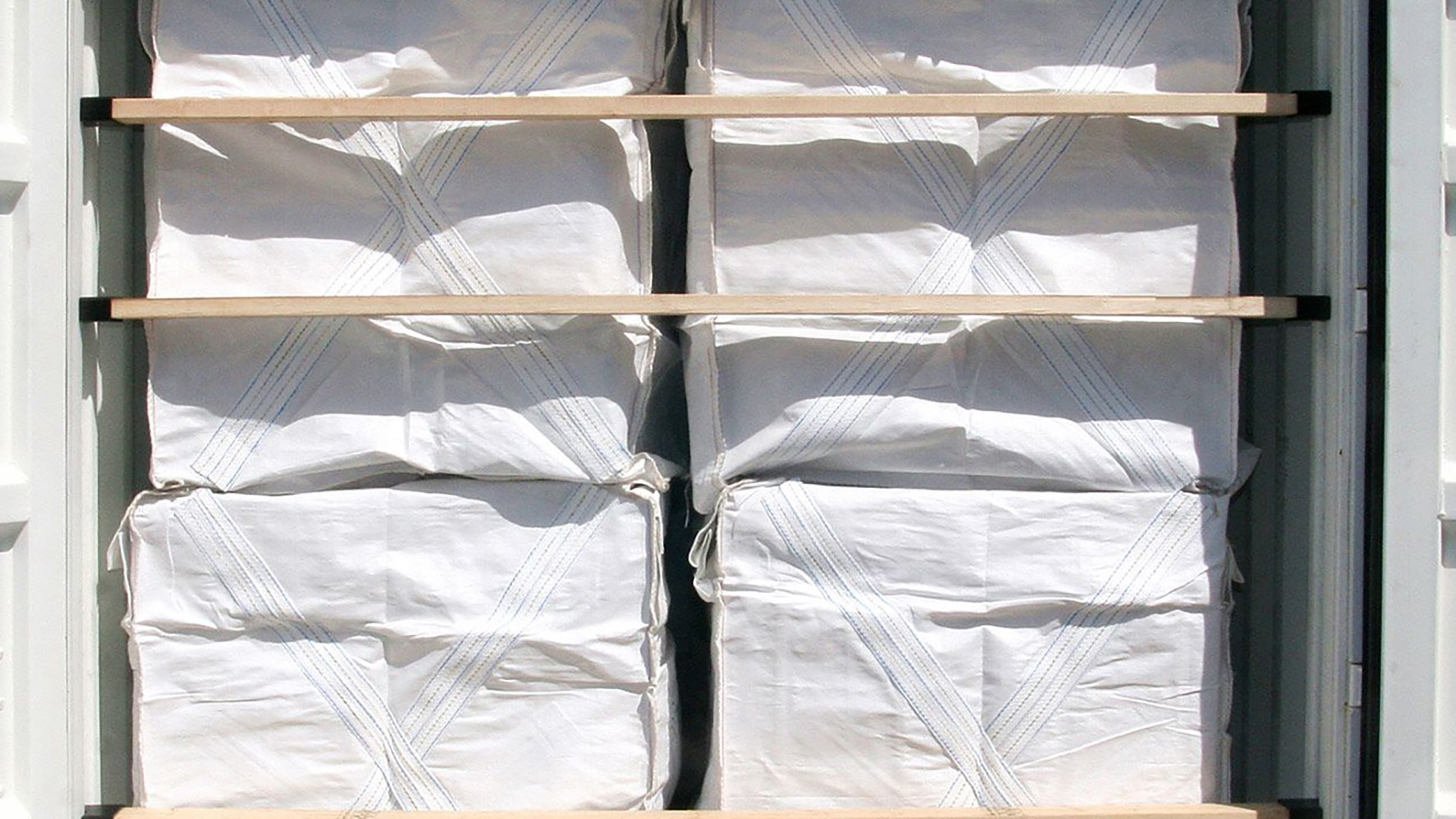

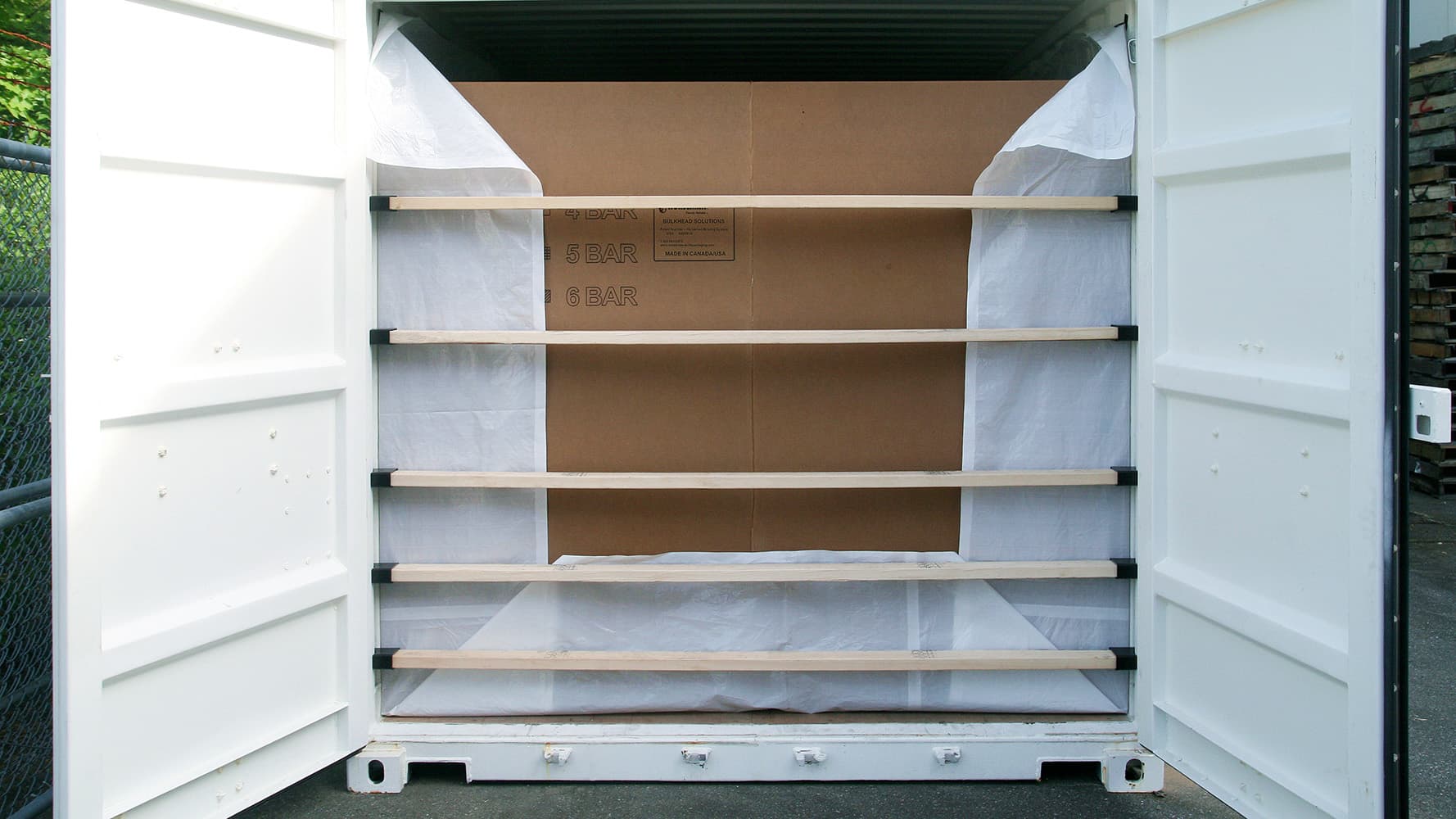

Placement squares along the bulkhead to indicate where to put the bracing bars. Use the marked points depending on the number of bars. Make the bracing bars level when installing them. Do not cross bars diagonally or form triangles. Hang the bars parallel to the ground for correct installation.

Question 2

What container sizes can the bracing system be used in?

Accepted Answer

The Norseman Bracing System is compatible with standard 20-foot and 40-foot ISO shipping containers, with custom configurations also available for 53-foot containers upon request. Use 91-5/8” 2x4 lumber in spruce, pine, or fir that’s #2-&-better quality as braces. The bulkheads come in a tri-fold configuration that can be folded along the perforations and fit snugly in place in standard and ISO containers. Be sure your container fits the bulkhead and braces before you order.

Question 3

What components are included in the Norseman Bracing System?

Accepted Answer

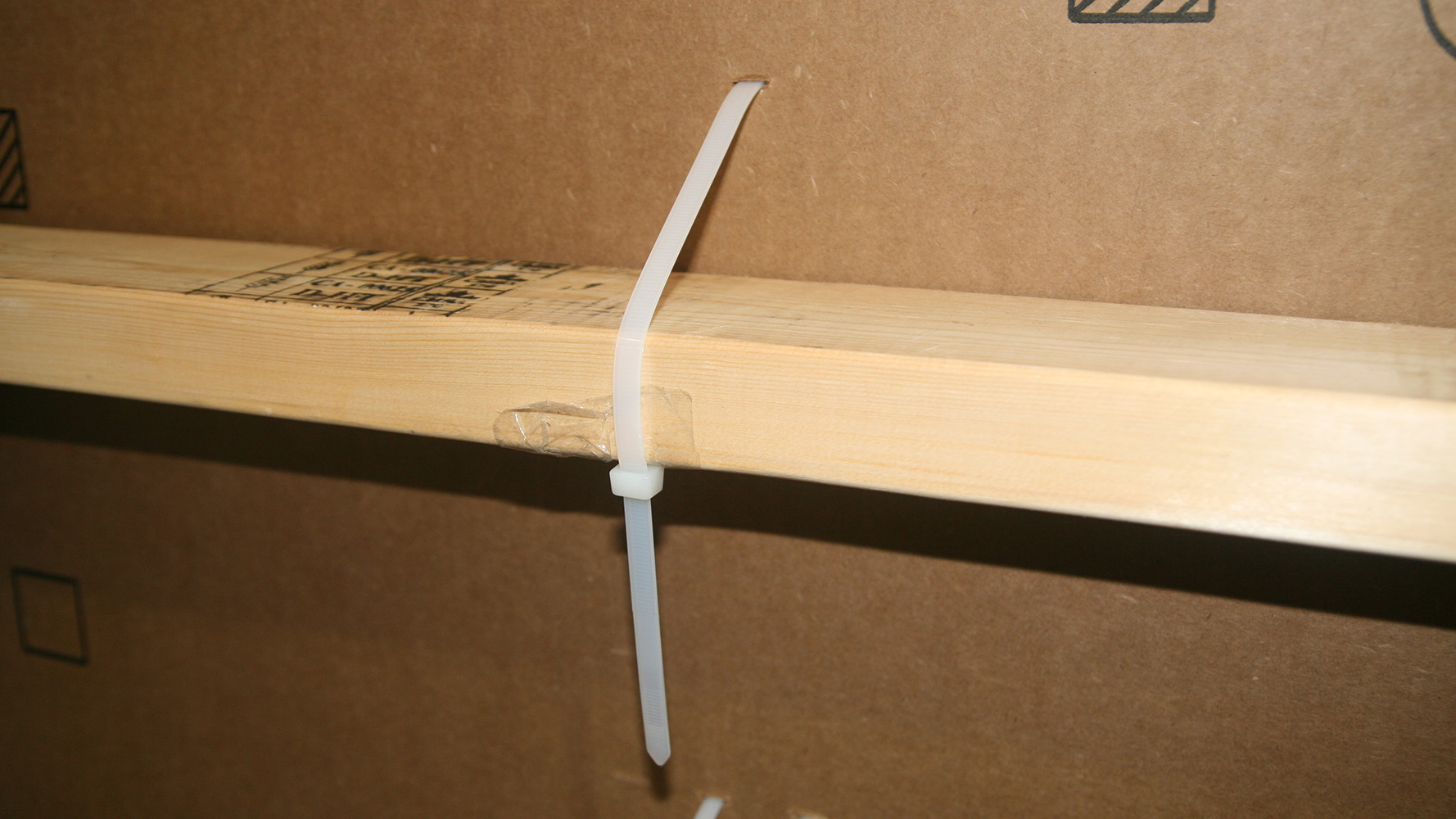

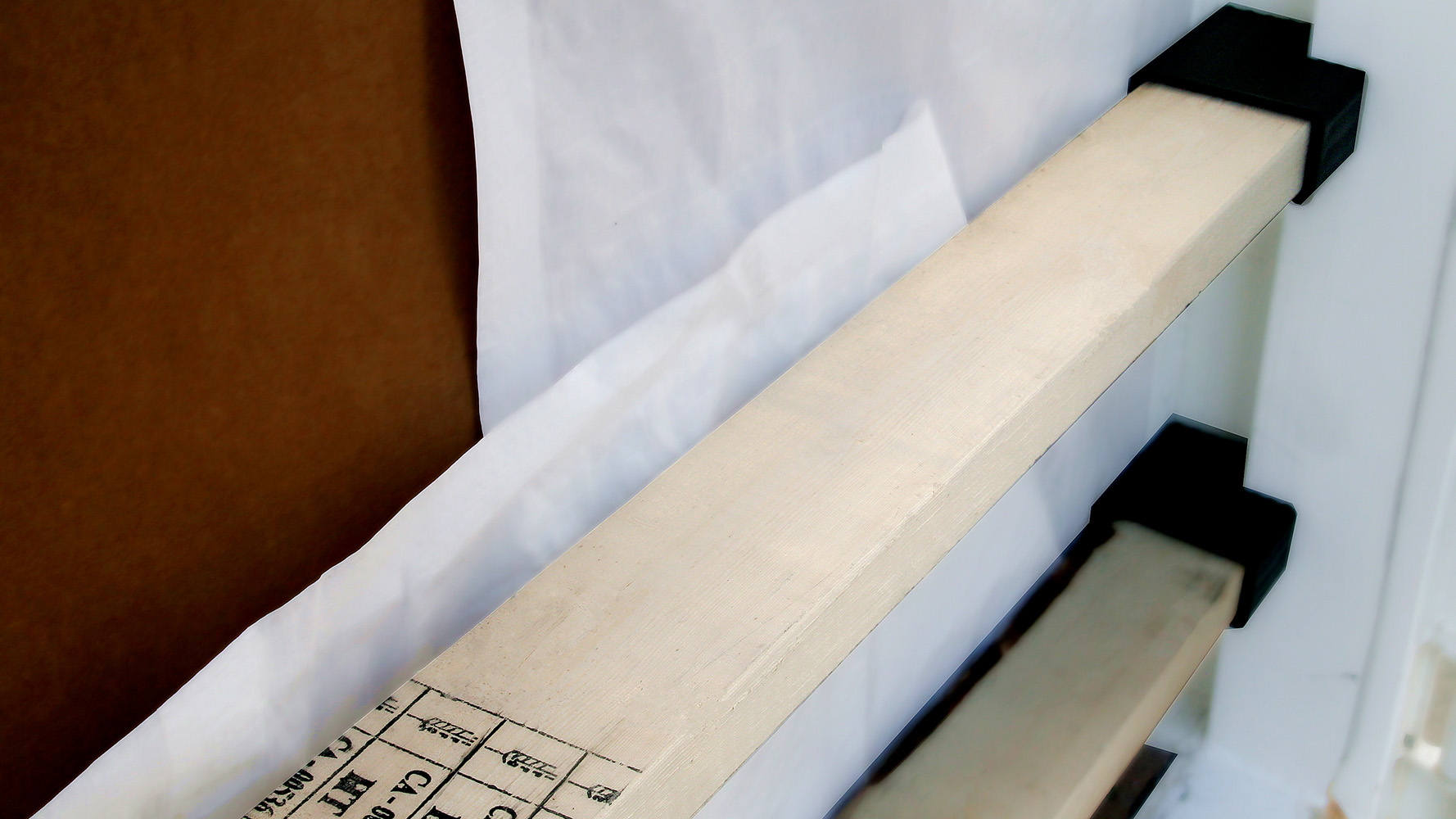

The system includes a corrugated bulkhead and restraining caps or steel bracing bars, either square or round. These components work together to create a secure load restraint solution during shipping. The wood bracing system uses 2x4 lumber and bracing end caps that slot onto the 2x4 brace. The steel bars are square tubes, with no caps needed, and can be secured to the bulkhead using zip ties inserted through designed perforations in the bulkhead face where the bars are meant to hang.

Question 4

Are there any maintenance tips for the bracing system?

Accepted Answer

One important tip is to store the bracing caps and wood braces at room temperature in a dry, safe location. The bulkhead and bracing cap system is also 100% recyclable with no special disposal conditions. The bracing cap system is very cost-effective, so replacing 2x4s and installing a new corrugated bulkhead is easier on the wallet than with other bulkhead containment systems.

Question 5

What’s included in the Norseman Bracing System?

Accepted Answer

This is an engineered system that includes: The corrugated cardboard bulkhead Wood bracing Patented restraining caps that hold the wood bracing in place

Question 6

Is it difficult to install the bracing and restraining caps system?

Accepted Answer

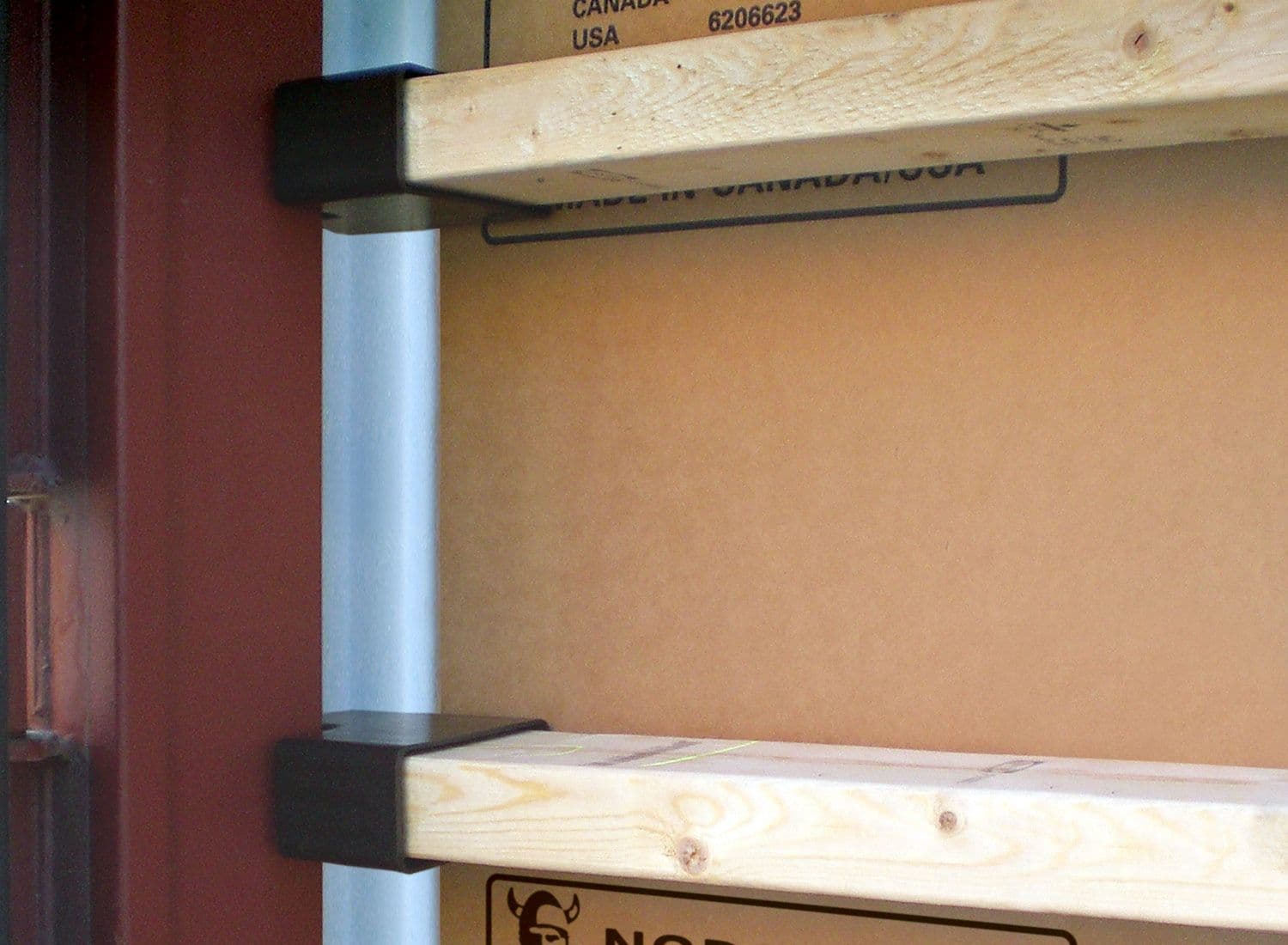

No, this system virtually eliminates the need for ties to secure the wood bracing to the bulkhead and can be done by one person. The reinforcement caps are installed easily with a friction fit into the U-channel on the container wall. Note: Ties may be required for tilt loading with an installed bulkhead system

ITEM NUMBER	PRODUCT
407419	Bulkhead (Bi-fold)
462328	Bulkhead (Tri-fold)
450493	Bulkhead (Tri-fold)
462250	Steel Bar Galvanized (Square)
461093	Steel Bar Black (Round)
408320	Lumber
408898	Bracing Cap

Norseman Bracing System

ENGINEERED PATENTED AND 100% RECYCLABLE LOADING SOLUTION.

Features

Frequently Asked Questions

GEAR POINTS

Protect

Withstand

Resist

Fit

Perform

Norseman Bracing System

NORSEMAN BRACING SYSTEM INSTALLATION GUIDE
